KUHN KUHN HR 6040 - BTFR Seed Bar - Venta Front Tank

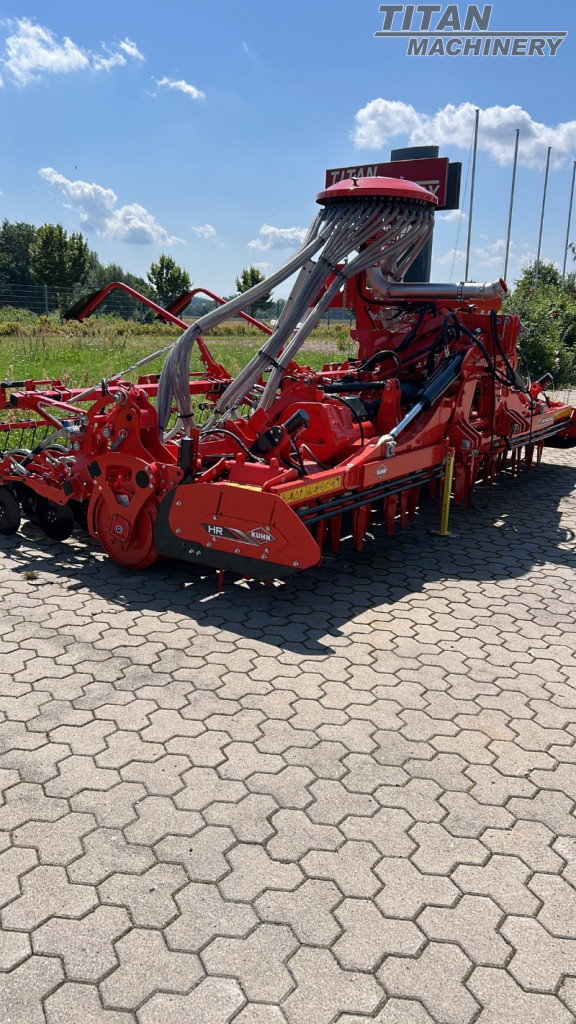

KUHN HR 6040 RCS + BTFR 6030-40 Seed Bar + Venta TF 1512 ISOBUS Front Tank

High-Capacity 6m Power Harrow + Pneumatic Seed Drill Combination

Available for sale: a professional KUHN 6.0 m seedbed preparation and seeding combination, consisting of:

= KUHN HR 6040 RCS Power Harrow
= KUHN BTFR 6030-40 Seed Bar
= KUHN Venta TF 1512 ISOBUS Front Hopper
= Steeliner Roller
= VISTAFLOW distribution system
= Radar sensor
= Top Link Sensor Kit
= Additional accessories and wiring components included

Technical Specifications

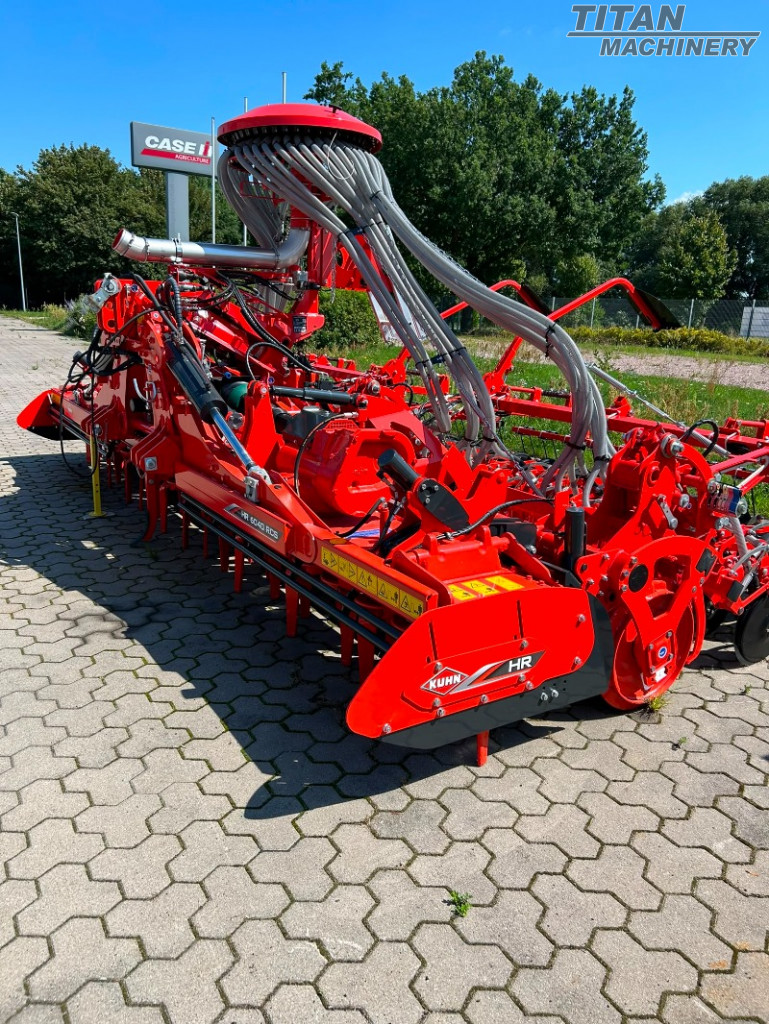

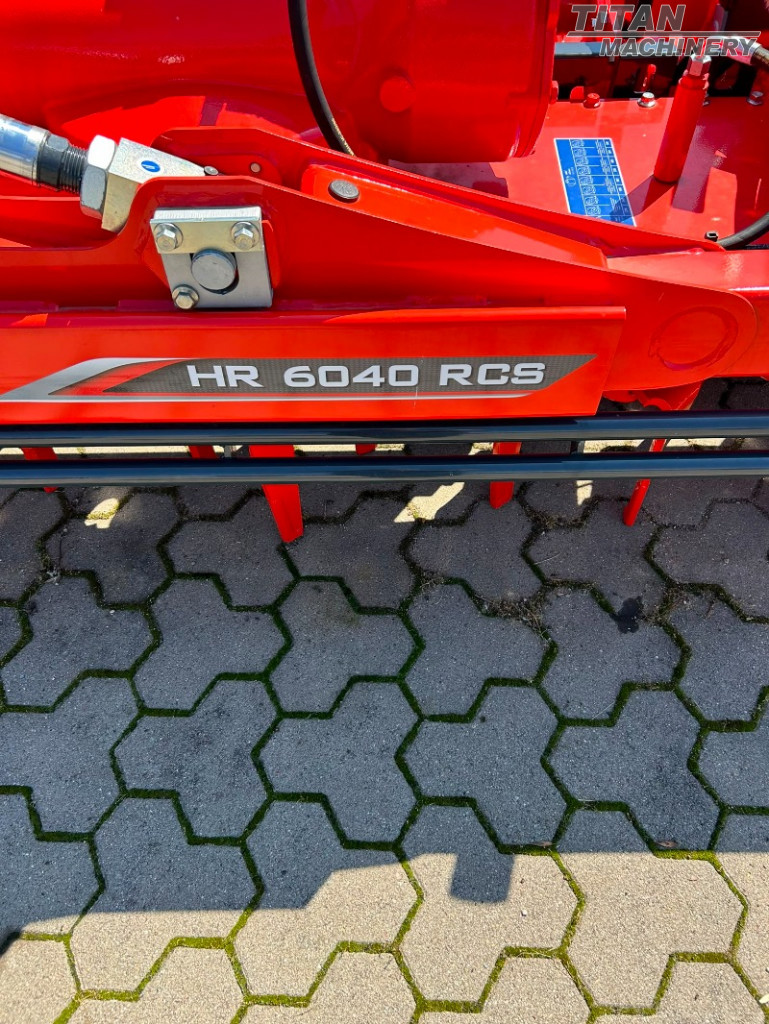

= KUHN HR 6040 RCS Power Harrow
= Working width: 6.00 m
= Transport width: 3.00 m
= Transport height: 3.60 m
= Tractor power requirement: 200-460 HP
= PTO speed: 1,000 rpm
= 20 rotors
= Hydraulic working depth adjustment
= Heavy-duty central gearbox with oil cooling
= Duplex side gearboxes
= Individual overload protection on each machine section
= Category III / IVN three-point linkage
= Hydraulic transport locking system
= Gearbox temperature monitoring system

Standard Equipment
= DURAKUHN tines with FAST-Fit quick-change system
= Maxipacker roller (535 mm)
= Hydraulic rear levelling board
= Lighting and warning panels
= PTO shaft included

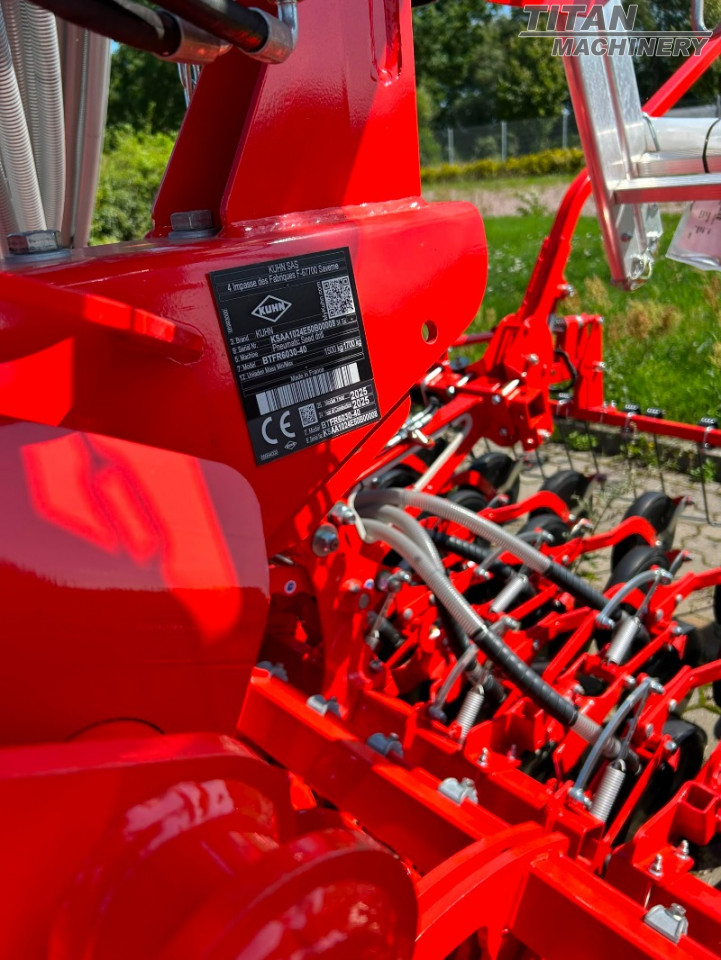

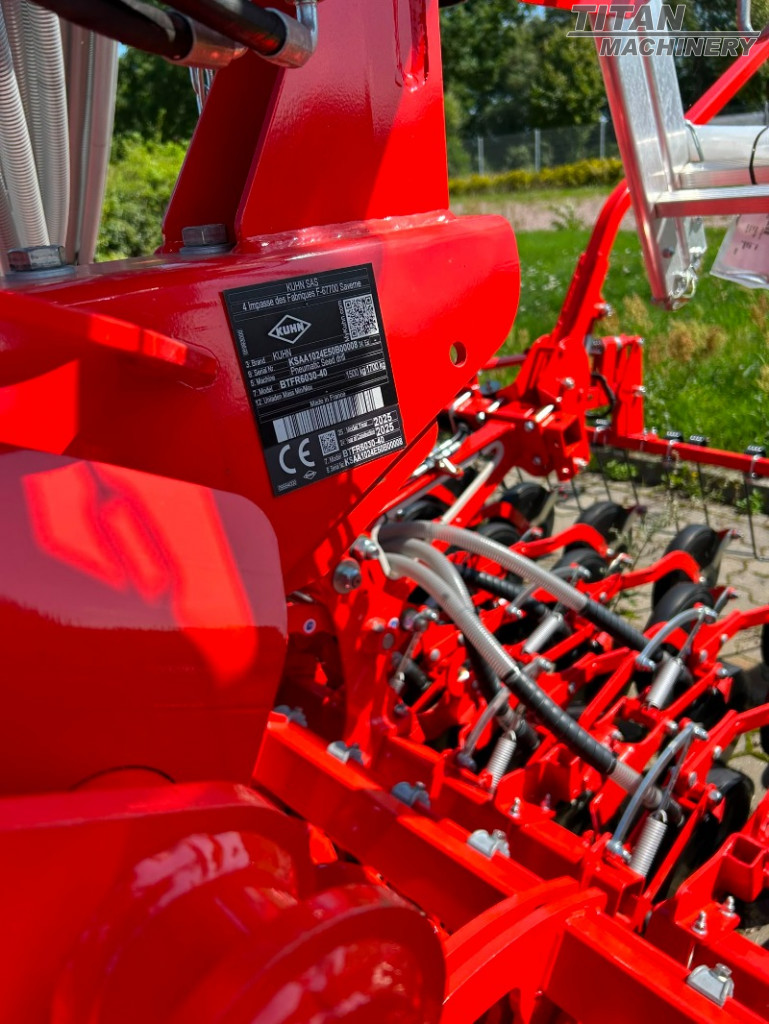

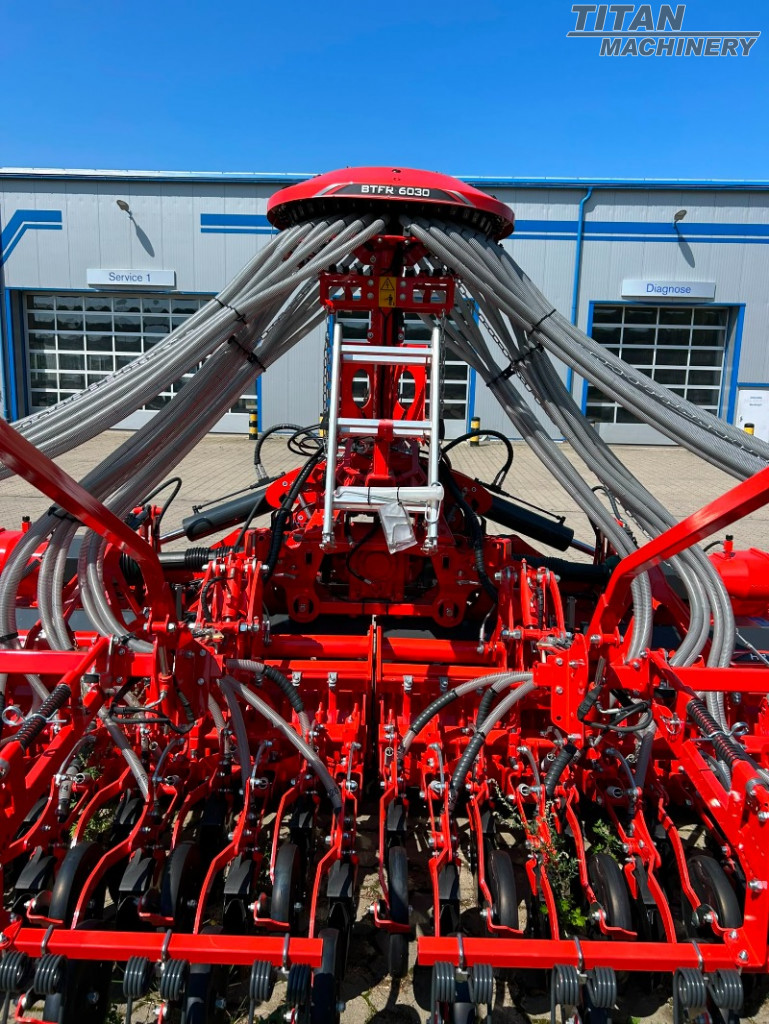

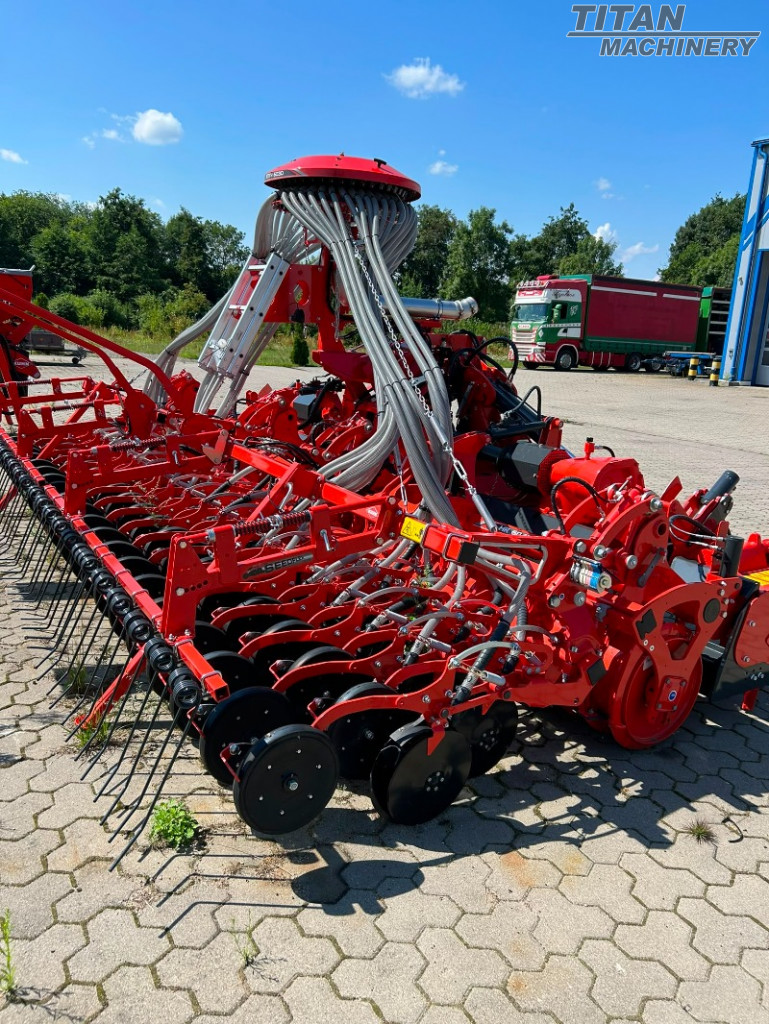

BTFR 6030-40 Seed Bar
= Working width: 6.00 m
= 40 rows
= 15 cm row spacing

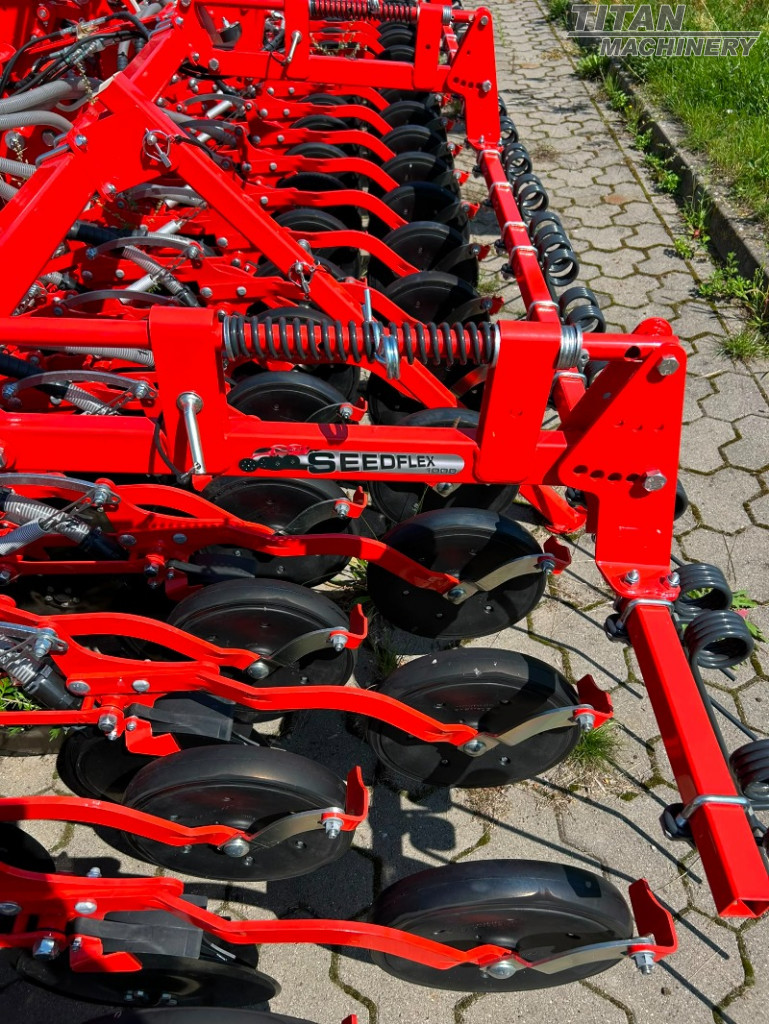

= Seedflex double-disc coulters
= Hydraulic seed depth adjustment
= Manual section shut-off

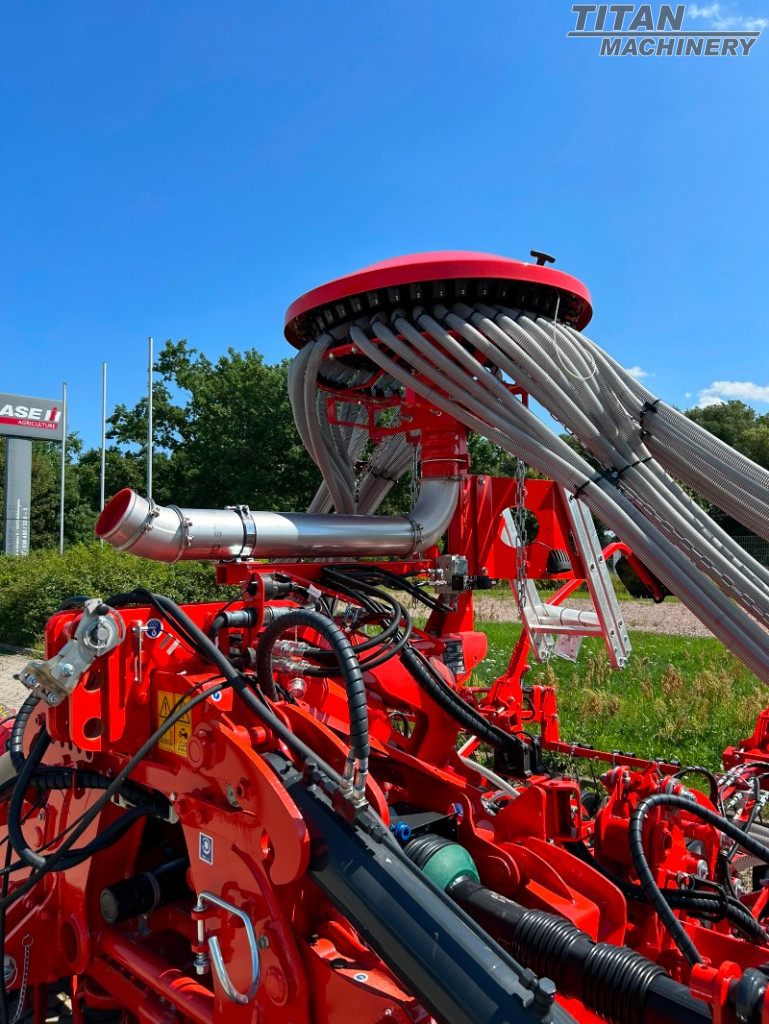

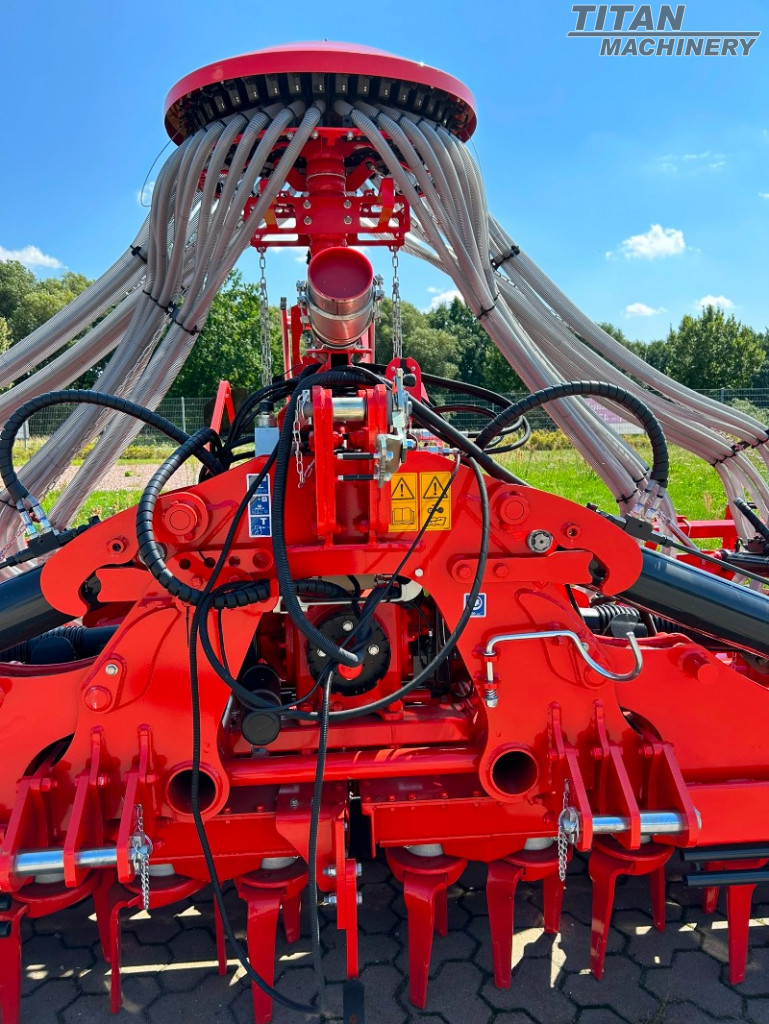

= VISTAFLOW distribution head
= Rear tine harrow included

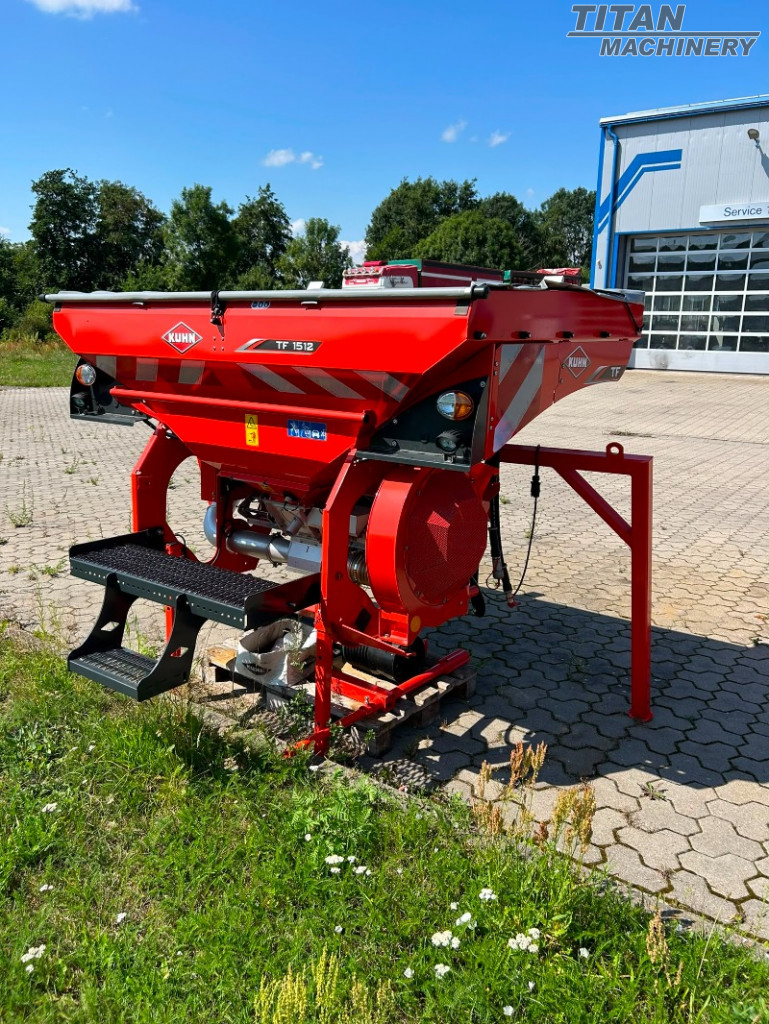

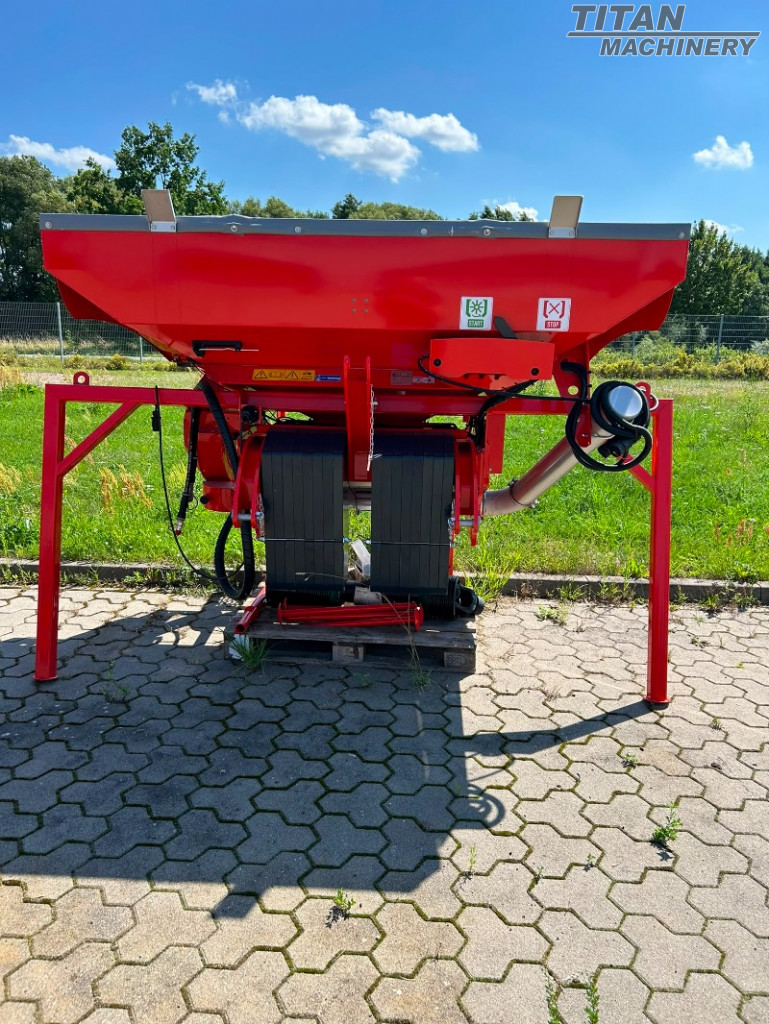

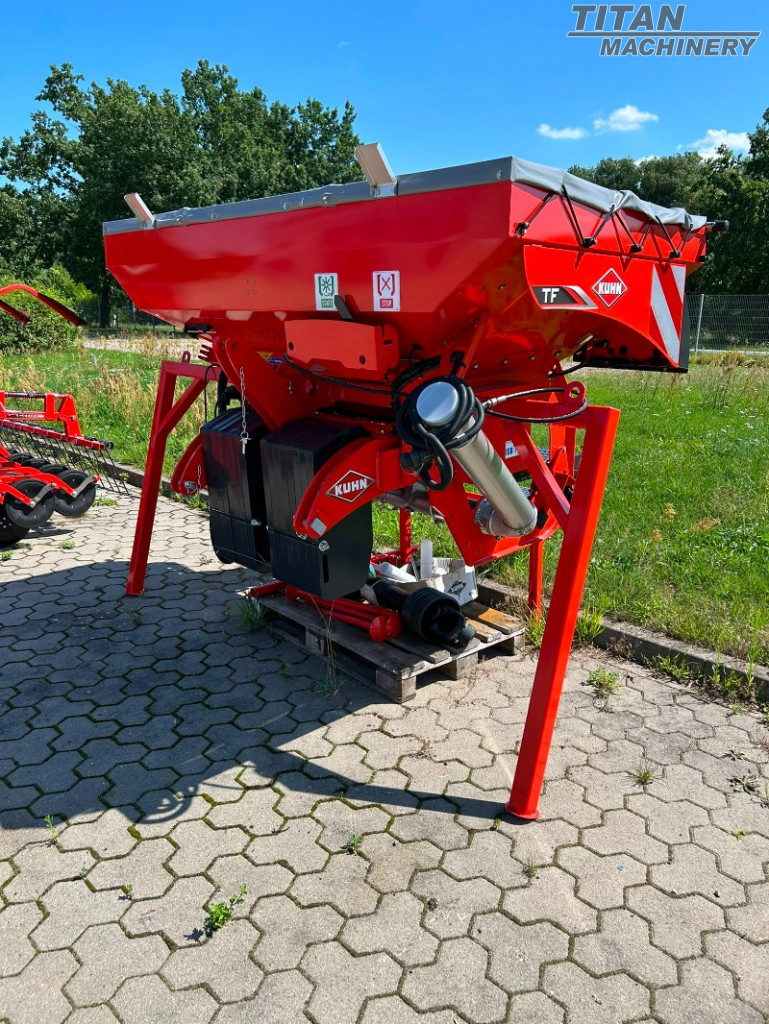

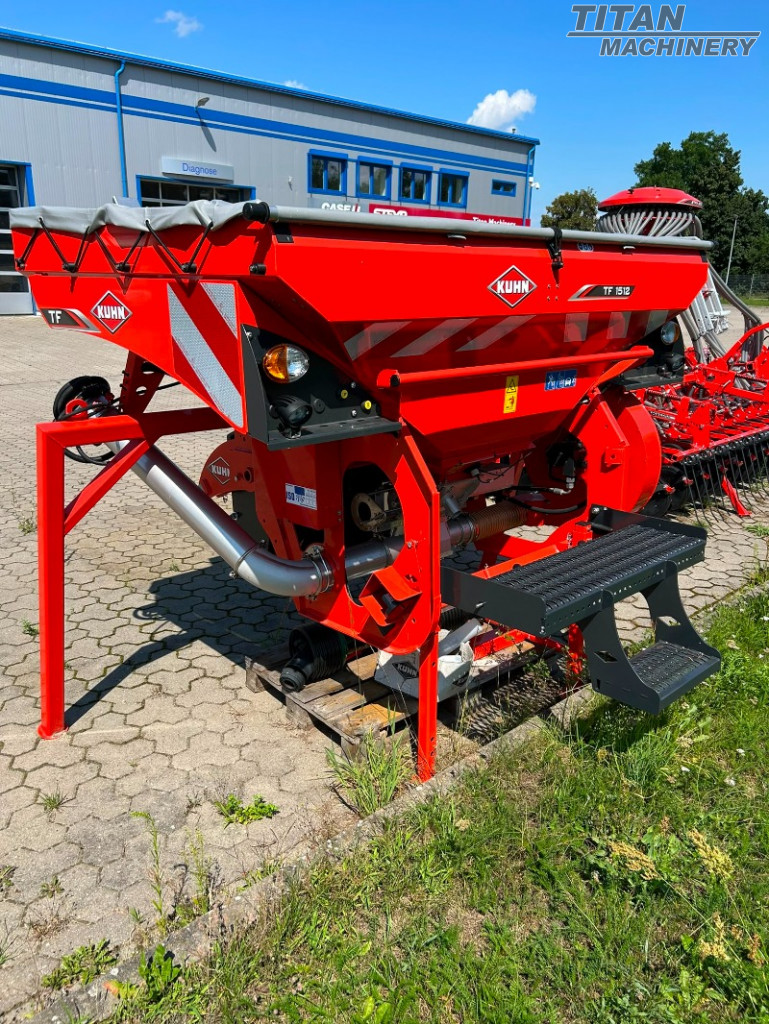

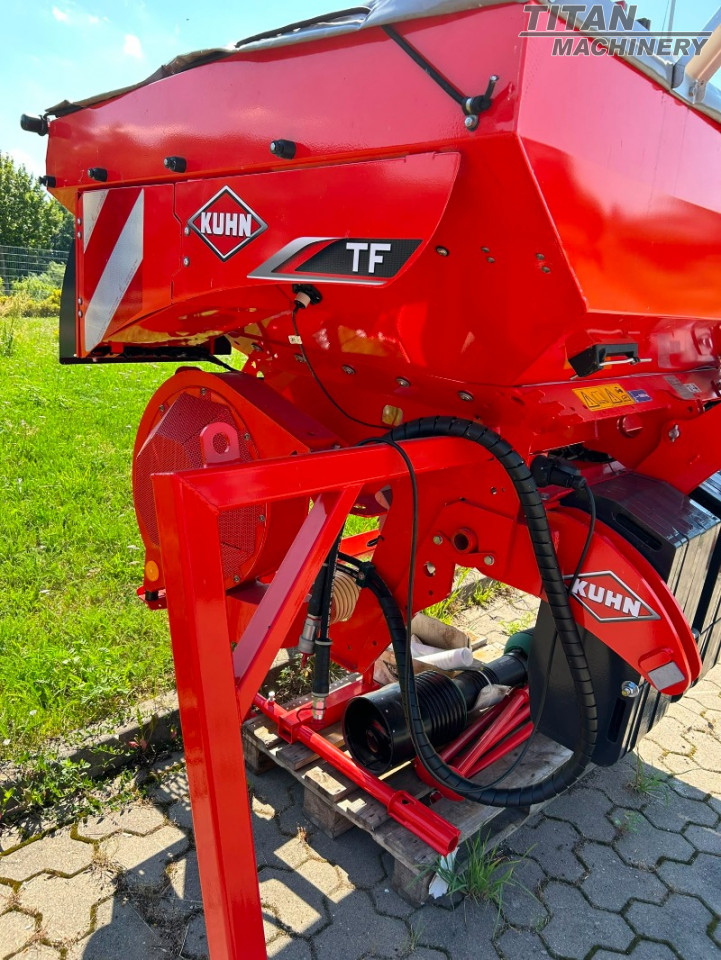

Venta TF 1512 ISOBUS Front Hopper
= Tank capacity: 1,500 l (expandable to 2,000 l)
= Maximum payload: 1,800 kg
= QUANTRON S-2 control unit
= Electrically driven metering system
= Automatic tramlining
= Electronic seed monitoring
= Hydraulic headland control options
= LED work lighting
= Loading platform and support stands included
= 600 kg additional weight

Condition
= New, unused, year of production 2025

Machine Identification
= HR 6040 RCS Serial No.: KSAA1024A20B00100
= BTFR 6030-40 Serial No.: KSAA1024E50B00008

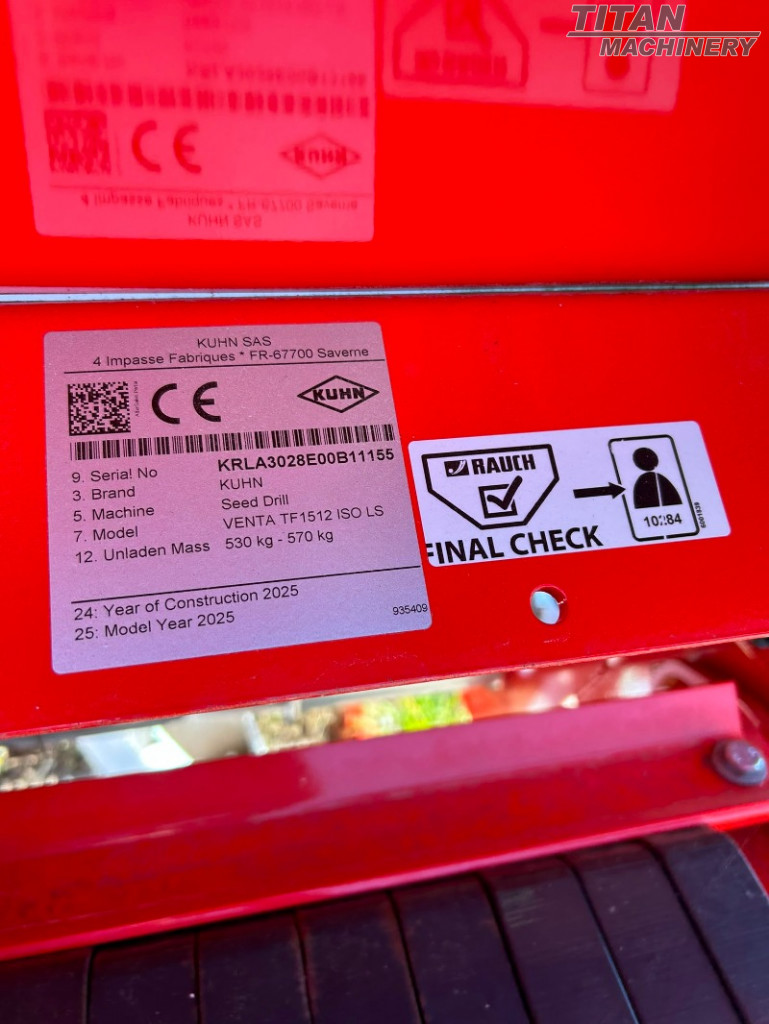

= Venta TF 1512 Serial No.: KRLA3028E00B11155

Ideal For
Large-scale arable farming operations looking for a high-output seedbed preparation and drilling solution with ISOBUS compatibility, precise seed placement, and excellent field performance.
